Wuzland® Ductile and Cast Iron Manhole Covers, Sewer and Drain Covers, Trench Covers, Gully Gratings and Grids Inlets
Products Gallery - wuzland® ductile and cast iron manhole covers

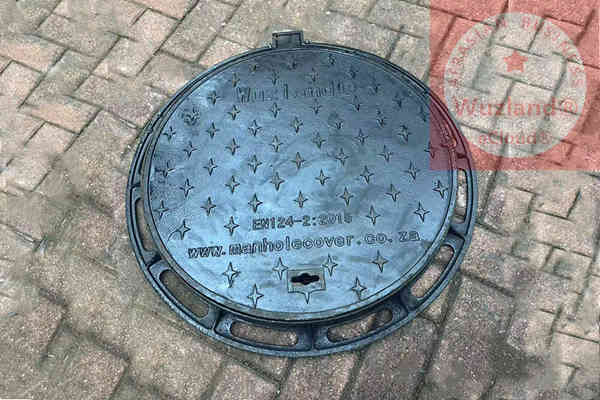

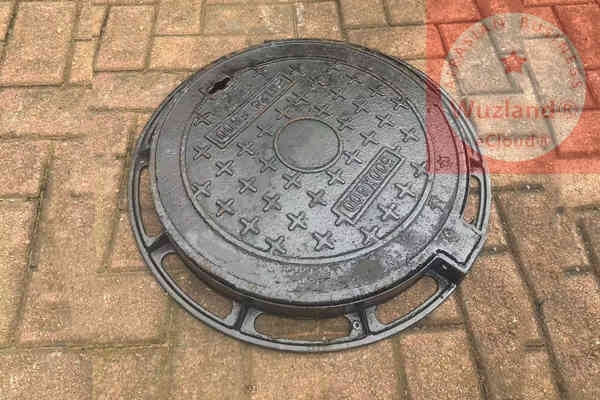

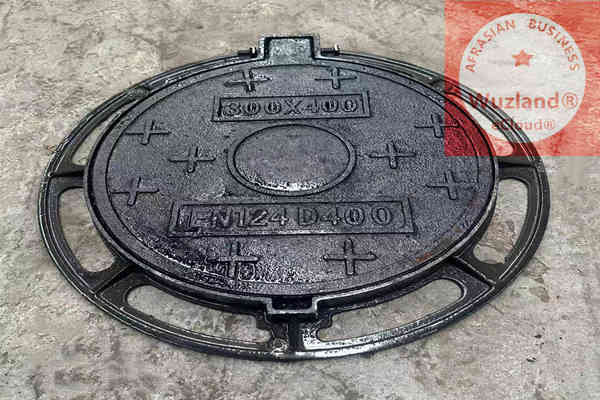

Circular ductile and cast iron manhole covers (Product Code: Diameter x Thickness of cover)
2A Φ650x80
- C/O: Φ597, 2A
- DUTY CLASS: D400 Heavy (H80)
- WEIGHT (Cover & Frame): 60 KG
- Passing Vehicle GVM ≤ 80 TONS
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, highway sides
- Feature: Hinged, lockable

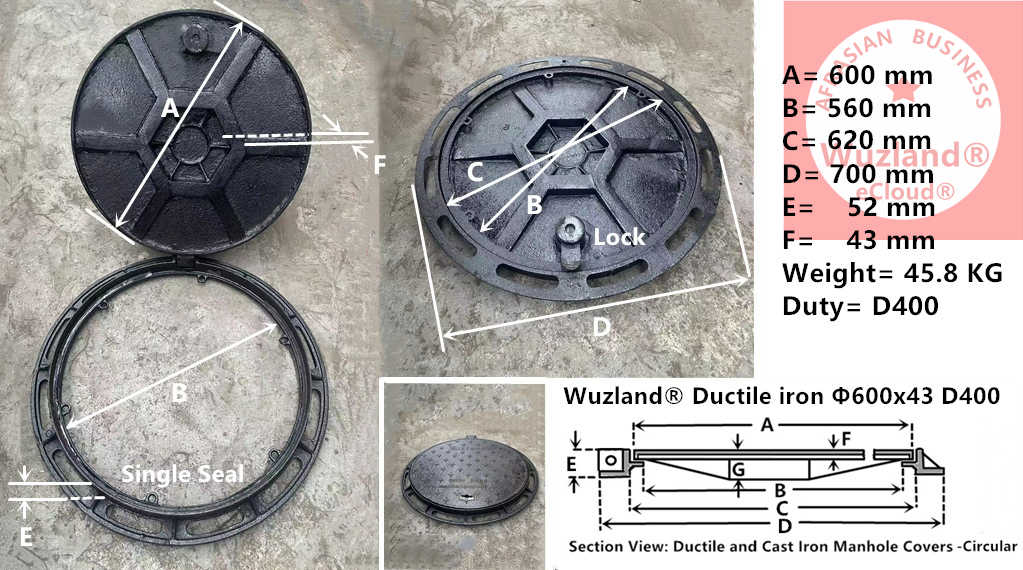

4A Φ600x68
- C/O: Φ568, 4A
- DUTY CLASS: D400 H80 Heavy
- WEIGHT (Cover & Frame): 50.5 KG
- Passing Vehicle GVM ≤ 80 TONS
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, highway sides
- Feature: Cover hinged, lockable
1A Φ700x76
- C/O: Φ672, 1A
- DUTY CLASS: D400 H70 Heavy
- WEIGHT (Cover & Frame): 63 KG
- Passing Vehicle GVM ≤ 70 TONS
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, roadsides
- Feature: Cover hinged

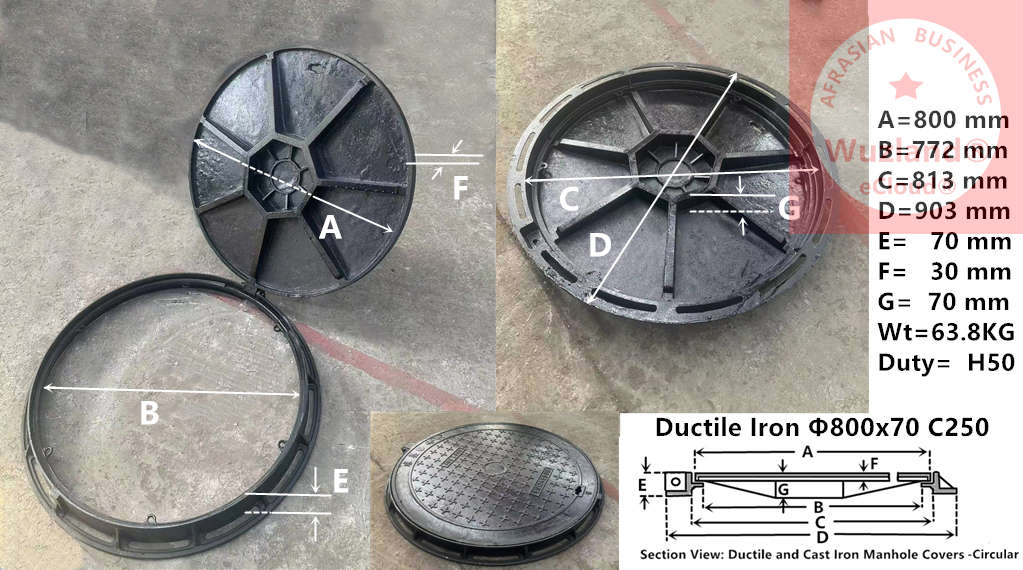

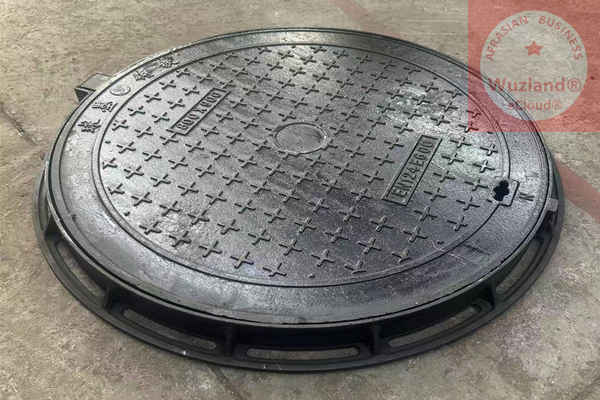

Φ800x60
- C/O: Φ770/Φ813
- DUTY CLASS: H50 Heavy
- WEIGHT (Cover & Frame): 64.4 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Public roads and roadsides
- Feature: Cover hinged, lockable

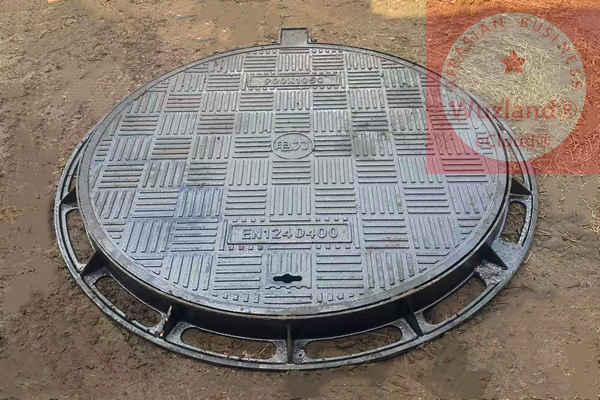

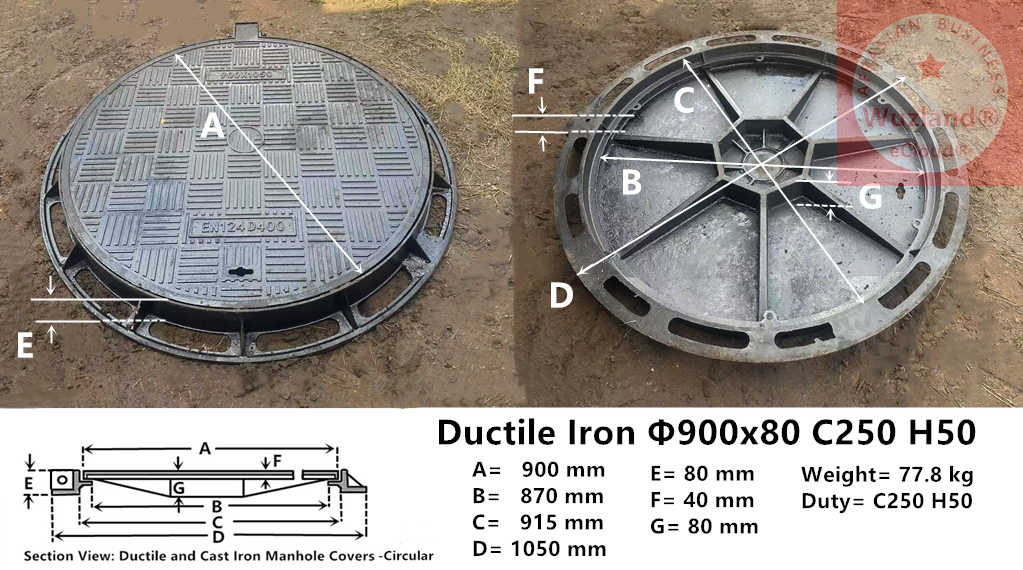

Φ900x70
- C/O: Φ868
- DUTY CLASS: C250 Heavy (H50)
- WEIGHT (Cover & Frame): 73.6 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Public roads, roadsides
- Feature: Cover Hinged, lockable

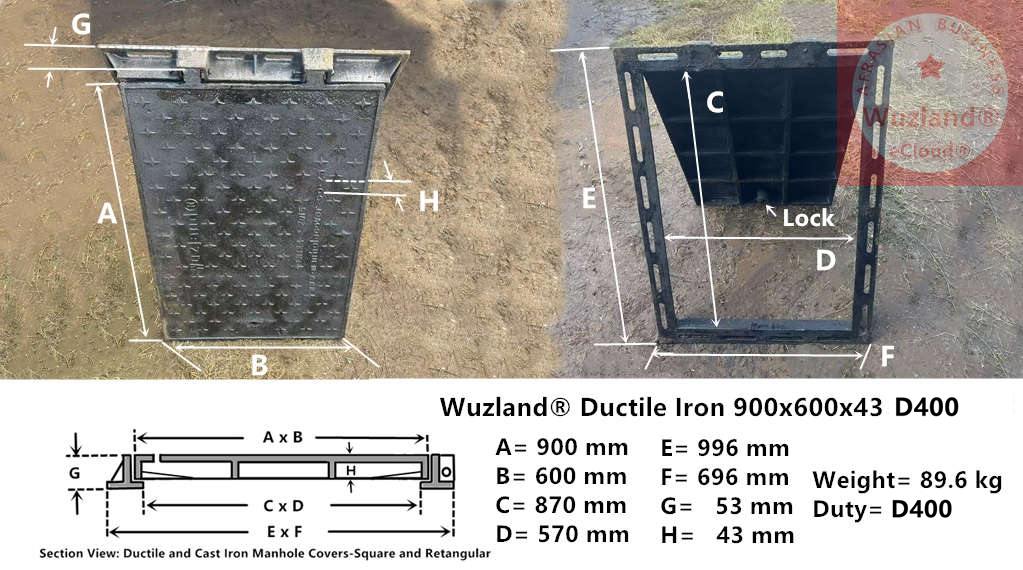

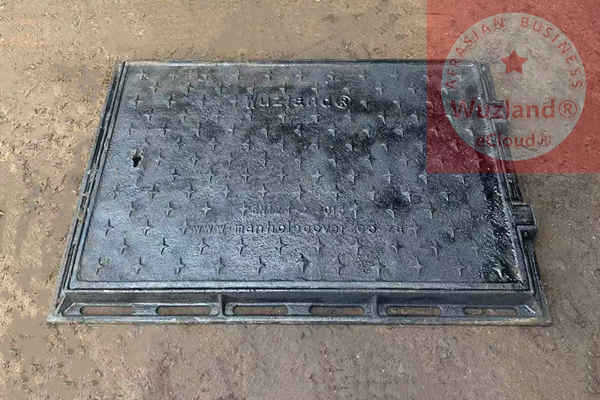

Square/Rectangle ductile and cast iron manhole covers (Code: Length x Width x Thickness of cover)

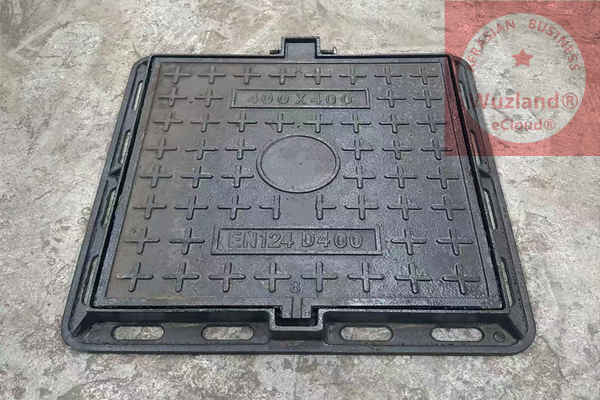

No Name 400x400x40
- C/O: 360x360
- DUTY CLASS: C250 Heavy (H50)
- WEIGHT (Cover and Frame): 21.4 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads
- Feature: Hinged
No Name 500x500x40
- CLEAR OPENING: 460x460
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 44.1 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway sides
- Feature: Hinged
No Name 600x600x40
- CLEAR OPENING: 575x575
- DUTY CLASS: C250 Heavy H50
- WEIGHT (Cover and Frame): 34.2 KG
- Passing Vehicle GVM ≤ 50 TON
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads and roadside.
- Feature: Hinged
No Name 600x600x65
- C/O: 573x573 Type 12
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 64.3 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway sides
- Feature: Cover hinged
Wuzland® 9D 630x480x75
- C/O: 600x450 Type 9D
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 44.7 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway sides
- Feature: Cover hinged, lockable
No Name 700x700x40
- CLEAR OPENING: 675x675
- DUTY CLASS: C250 Heavy H40
- WEIGHT (Cover and Frame): 42 KG
- Passing Vehicle GVM ≤ 40 TON
- FORCE RESISTANCE: ≤ 200 KN
- AREA: Complexes, public parkings.
- Feature: Hinged
No Name 700x700x45
- CLEAR OPENING: 670x670
- DUTY CLASS: C250 Heavy H50
- WEIGHT (Cover and Frame): 46.3 KG
- Passing Vehicle GVM ≤ 50 TON
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads
- Feature: Hinged
No Name 800x800x50
- CLEAR OPENING: 768x768
- DUTY CLASS: Heavy H40
- WEIGHT (Cover and Frame): 60.8 KG
- Passing Vehicle GVM ≤ 40 TON
- FORCE RESISTANCE: ≤ 200 KN
- AREA: Community roads and suburb roads
- Feature: Cover Hinged
No Name 1000x1000x45
- CLEAR OPENING: 973x973
- DUTY CLASS: Heavy H40
- WEIGHT (Cover and Frame): 125.1 KG
- Passing Vehicle GVM ≤ 40 TONS
- FORCE RESISTANCE: ≤ 200 KN
- AREA: Suburb roads, community roads
- Feature: Hinged
No Name 1200x1200x45
- CLEAR OPENING: 1175x1175
- DUTY CLASS: Heavy H30
- WEIGHT (Cover and Frame): 172.3 KG
- Passing Vehicle GVM ≤ 30 TONS
- FORCE RESISTANCE: ≤ 150 KN
- AREA: Public parking and driveway
- Feature: Hinged

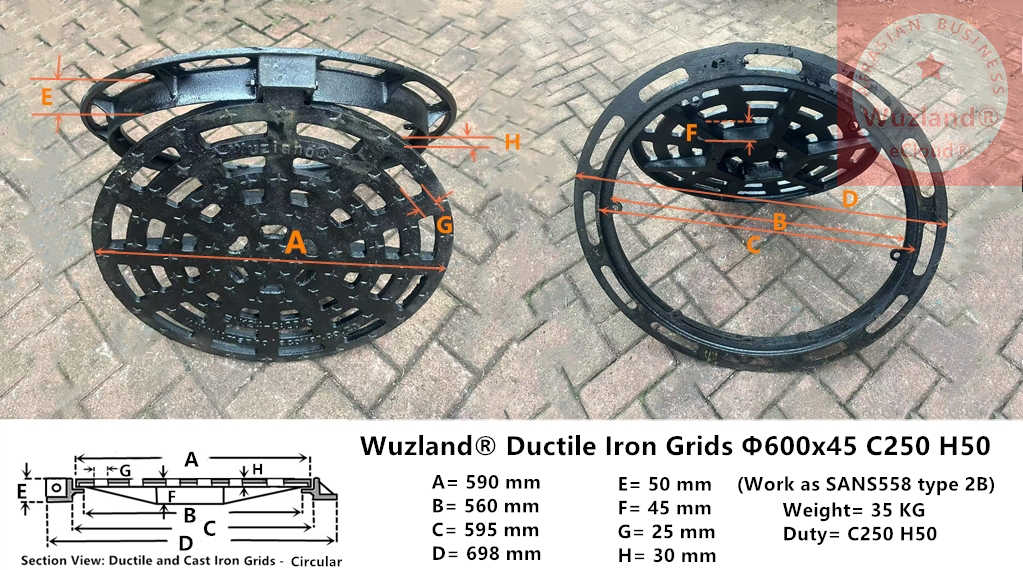

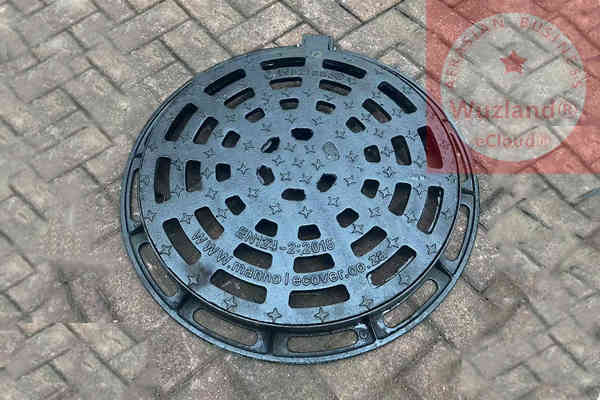

Ductile and cast iron gully gratings and grid inlets (Code: Length x Width x Thickness of inlet)
No Name DG400x400x40
- C/O: 358x358
- DUTY CLASS: C250 H50 Heavy
- WEIGHT (Cover and Frame): 18.3 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads and roadsides
- Feature: Cover hinged
No Name DG500x500x40
- C/O: 460x460
- DUTY CLASS: C250 Heavy (H50)
- WEIGHT (Cover and Frame): 30.0 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads
- Feature: Hinged
No Name DG600x400x40
- CLEAR OPENING: 560x360
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 38.8 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway sides
- Feature: Hinged
DGC600x400x50 Inlet
- Grid inlet only, no frame
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 25.7 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway sides
- Feature:
No Name DG600x600x40
- CLEAR OPENING: 560x560
- DUTY CLASS: C250 Heavy H50
- WEIGHT (Cover and Frame): 41.8 KG
- Passing Vehicle GVM ≤ 50 TON
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads
- Feature: Hinged
Wuzland® DG630x480x75
- CLEAR OPENING: 600x450
- DUTY CLASS: D400 Heavy H80
- WEIGHT (Cover and Frame): 50.2 KG
- Passing Vehicle GVM ≤ 80 TON
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, highway sides
- Feature: Inlet hinged
No Name DG800x800x40
- CLEAR OPENING: 773x773
- DUTY CLASS: Heavy H30
- WEIGHT (Cover and Frame): 53.7 KG
- Passing Vehicle GVM ≤ 30 TON
- FORCE RESISTANCE: ≤ 150 KN
- AREA: Public Parking and driveway
- Feature: Hinged
DG 1000x1000x43
- CLEAR OPENING: 973x973
- DUTY CLASS: Heavy H30
- WEIGHT (Cover and Frame): 100.3 KG
- Passing Vehicle GVM ≤ 30 TON
- FORCE RESISTANCE: ≤ 150 KN
- AREA: Public Parking and driveway
- Feature: Grids inlet hinged

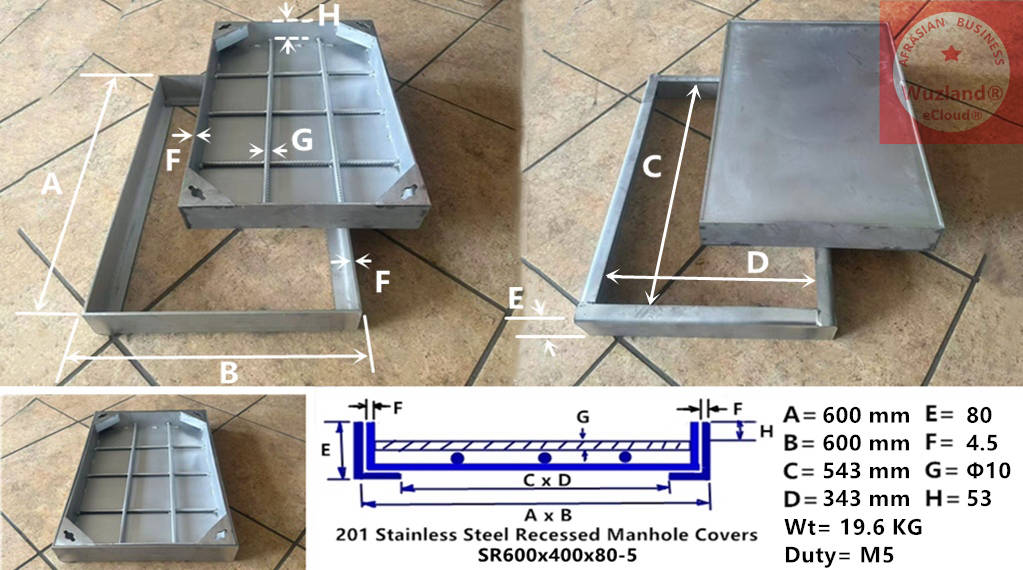

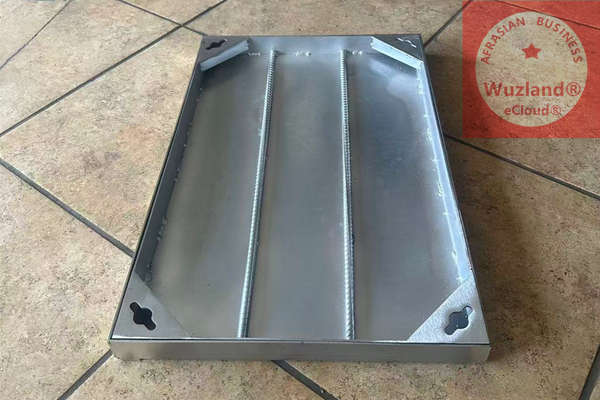

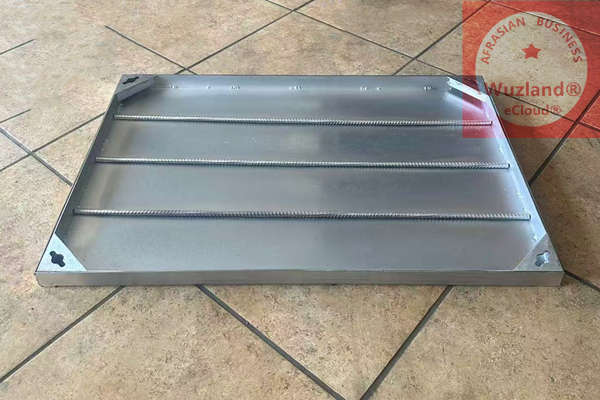

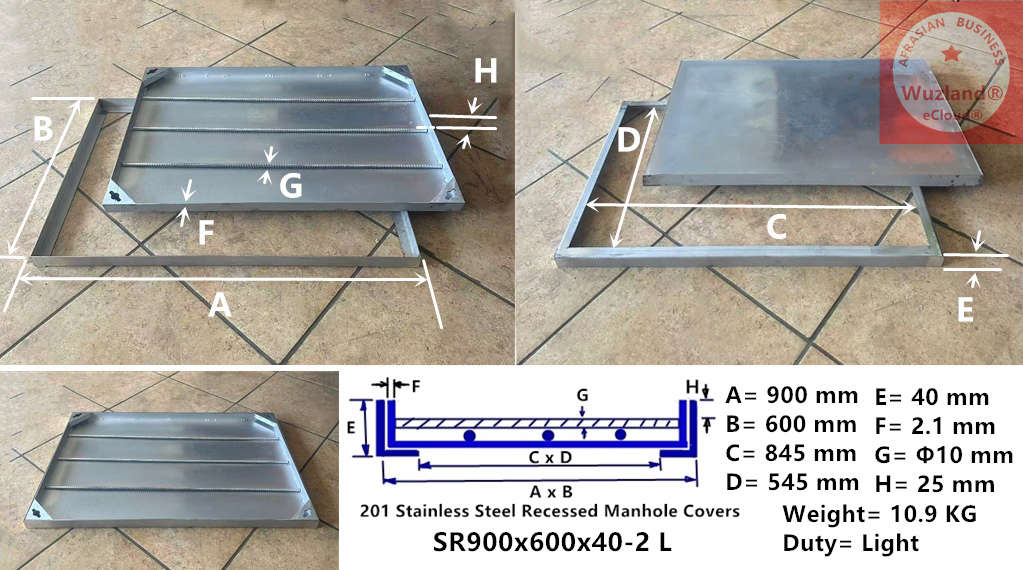

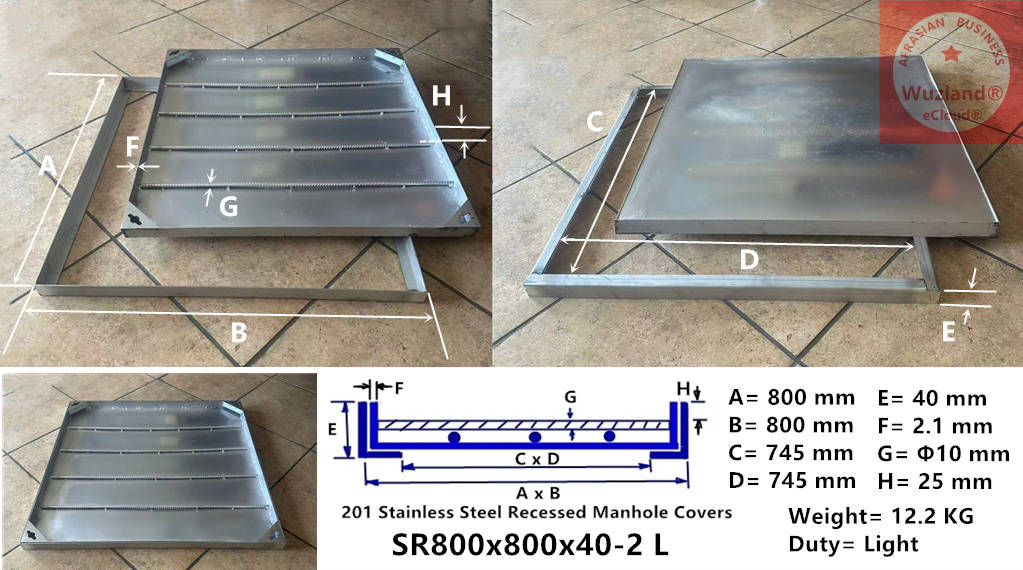

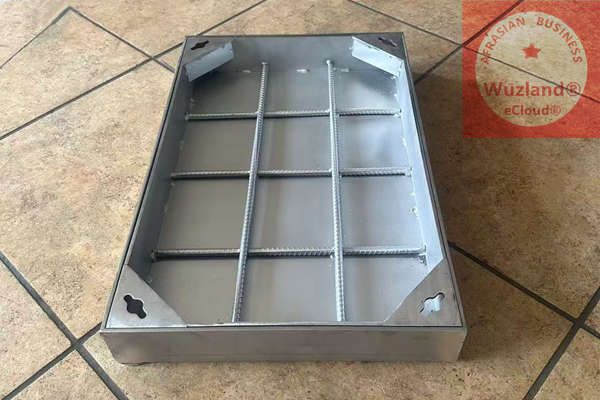

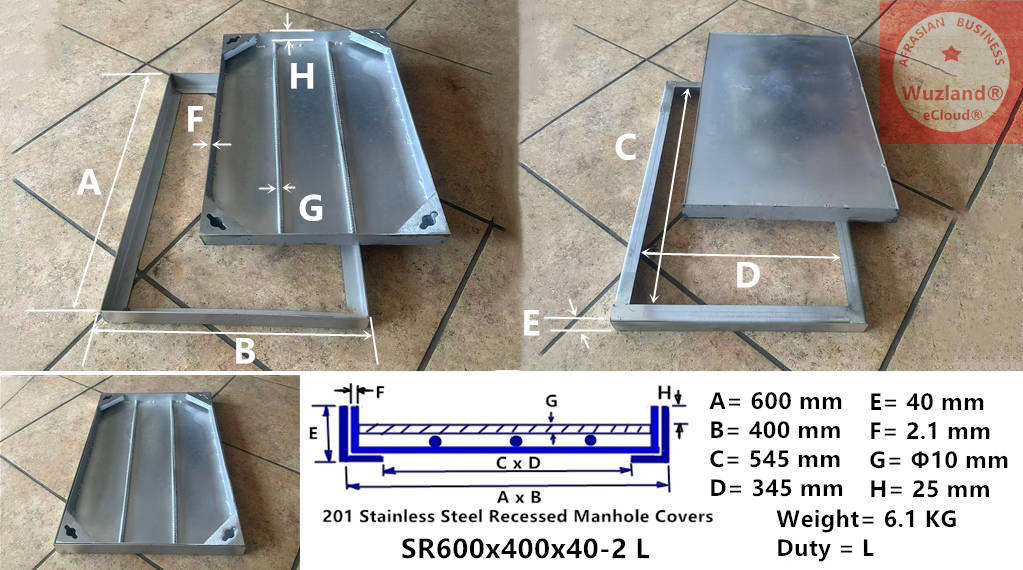

Stainless Steel (SS 201) Recessed Manhole Covers
600x600x40 2mm L
- Clear Opening: 588x588
- DUTY CLASS: Light (L1)
- Weight: 7.5 KG
- Passing Vehicle GVM: ≤ 1 Ton
- Force Resistance: ≤ 7 KN
- Area: Paving and tiling walkway
- Feature: Good for indoor usage
600x600x80 2mm L
- Clear Opening: 586x586
- DUTY CLASS: Light (L1)
- Weight: 10.4 KG
- Passing Vehicle GVM: ≤ 1 Ton
- Force Resistance: ≤ 7 KN
- Area: Paving and tiling walkway
- Feature: Good for indoor usage
600x600x80 5mm M4
- Clear Opening: 575x575
- DUTY CLASS: Medium (M4)
- Weight: 19.8 KG
- Passing Vehicle GVM: ≤ 4 Ton
- Force Resistance: ≤ 20 KN
- Area: Private driveway and parking
- Feature: Makes paving looking good
Galvanized Steel Gratings, Mentis Gratings
RS40 Mentis 1000x500x50 C250
- RS40 Mentis 40x40
- DUTY CLASS: Heavy (H50)
- Weight: 25.7 KG
- Force Resistance: ≤ 250 KN
- Passing Vehicle GVM: ≤ 50 Tons
- Area: Regional roads
- Feature: Galvanized against rusting
RS40 Mentis 1200x600x50 H35
- RS40 Mentis 40x40
- DUTY CLASS: Heavy (H35)
- Weight: 35.9 KG
- Force Resistance: ≤ 180 KN
- Passing Vehicle GVM: ≤ 35 Tons
- Area: Public parking and driveway
- Feature: Galvanized against rusting
Accessories
Cover Lifting Keys
- Hook length 20mm and 30mm
- DUTY CLASS: Heavy
- 8 mm Stainless Steel
- Feature:
Key for Locks
- Full Length: 255 mm
- DUTY CLASS: Heavy
- WEIGHT: 0.45 KG
- Feature:
Download our latest products list (Updated on 18 June 2024)
Download
Definitions and purchase instructions
