Wuzland® Steel Fiber Reinforced Concrete Manhole Covers, Sewer and Drain Covers, Trench Covers, Gully Gratings and Grids Inlets
Products Gallery - wuzland® steel fiber reinforced Concrete manhole covers
Circular steel fiber concrete manhole covers (Product Code: Diameter x Thickness of cover)

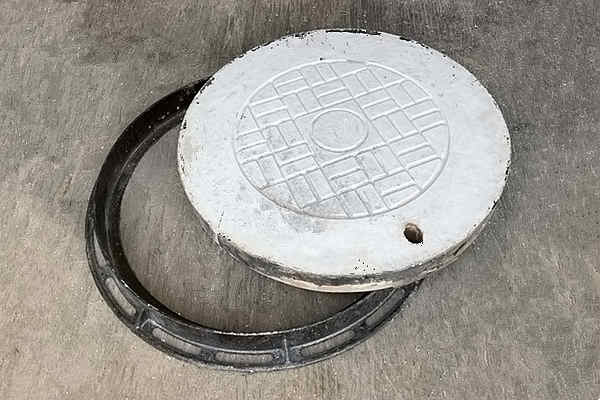

No Name Φ700x65
- C/O: Φ648 1A
- DUTY CLASS: EN124 D400 Heavy (H80)
- WEIGHT (Cover and Frame): 79.6 KG
- Passing Vehicle GVM ≤ 80 TONS
- FORCE RESISTANCE: ≤ 400 KN
- AREA: National roads, freeway
- Feature: Ductile iron frame

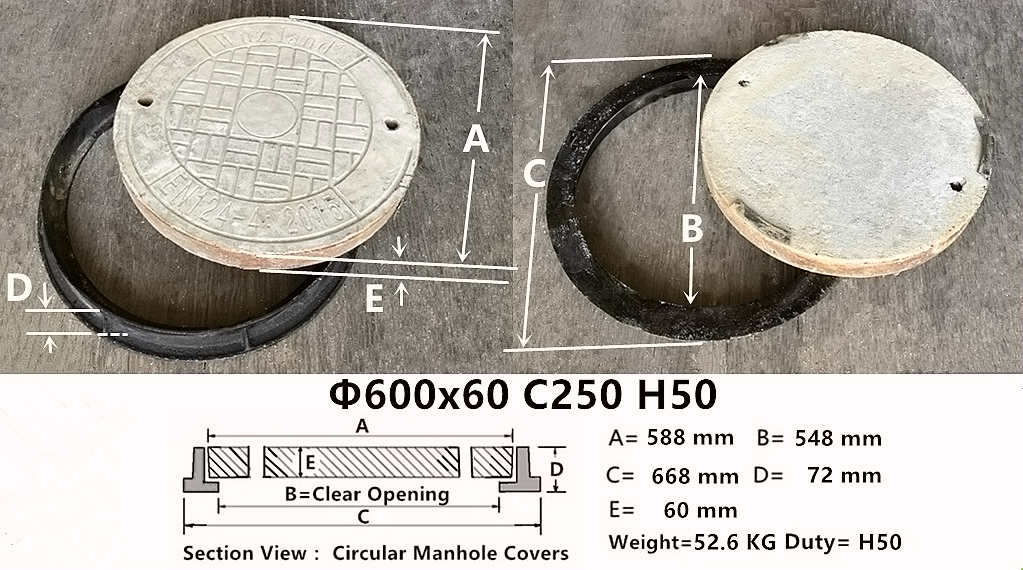

Wuzland® Φ600x60
- C/O: Φ548 4A Heavy
- DUTY CLASS: EN124 C250 Heavy (H50)
- WEIGHT (Cover & Frame): 52.6 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: Regional roads, highway sides
- Feature: Ductile iron frame
Square/Rectangle steel fiber concrete manhole covers (Code: Length x Width x Thickness of cover)

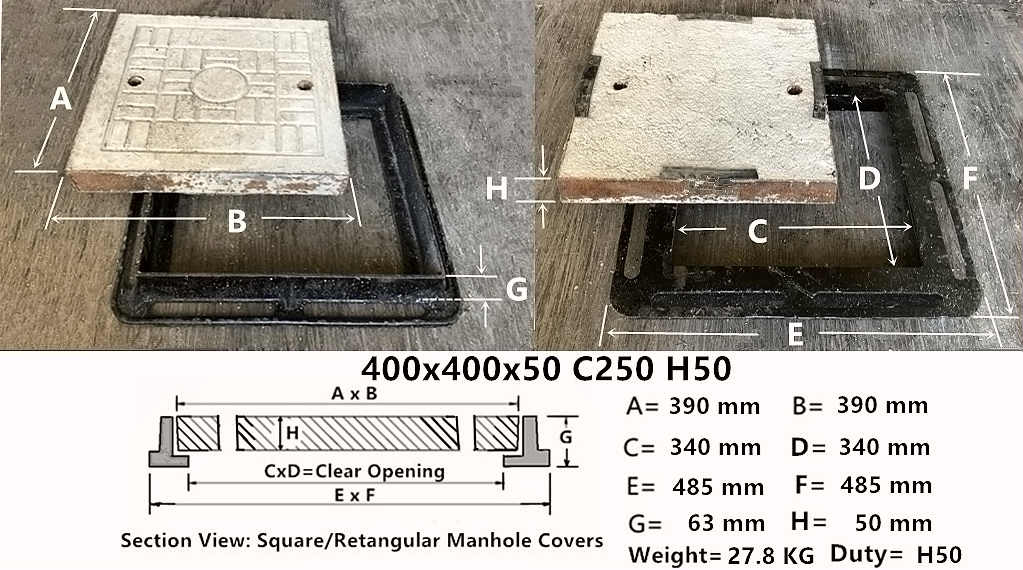

No Name 400x400x50
- C/O: 340x340
- DUTY CLASS: C250 Heavy (H50)
- WEIGHT (Cover and Frame): 27.8 KG
- Passing Vehicle GVM ≤ 50 TONS
- FORCE RESISTANCE: ≤ 250 KN
- AREA: National roads, freeway sides
- Feature: Ductile iron frame
No Name 500x500x60
- CLEAR OPENING: 450x450
- DUTY CLASS: C250 Heavy H50
- WEIGHT (Cover and Frame): 46.6 KG
- Passing Vehicle GVM ≤ 50 TON
- FORCE RESISTANCE: ≤ 250 KN
- AREA: National roads, freeway sides
- Feature: Ductile iron frame
No Name 700x700x60
- CLEAR OPENING: 655x655
- DUTY CLASS: C250 Heavy H50
- WEIGHT (Cover and Frame): 89.5 KG
- Passing Vehicle GVM ≤ 50 TON
- FORCE RESISTANCE: ≤ 250 KN
- AREA: National roads, freeway sides
- Feature: Ductile iron frame
